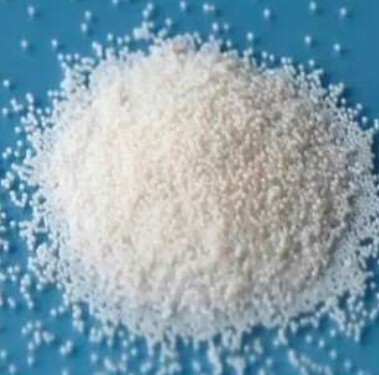

YSZ Zirconium Oxide Microbeads 0.10mm-0.65mm
0086-533-286 1996
Skype: cnretec
info@cnretec.com
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

CrownRe has perfected a high-purity nanomaterial titration process for producing zirconium oxide microbeads, utilizing 6nm high-purity ultrafine zirconium oxide from our own hydrothermal synthesis as raw material. The microbeads produced by this advanced titration method offer superior performance compared to those made by traditional rolling ball techniques, featuring lower porosity and higher density.

Performance and Characteristics

Performance and Characteristics

 YSZ Zirconium Oxide Microbeads 0.10mm-0.65mm

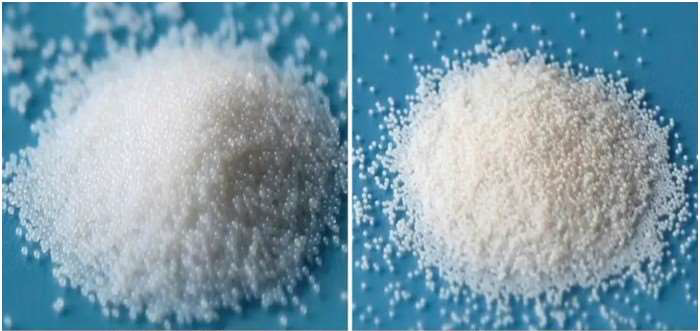

Eg. zirconia balls pre-sintered at 900 ℃and 1200 ℃

Product Specifications and Main Parameters

Product   Specification

CY3-010

CY3-020

CY3-030

CY3-034

CY3-040

CY3-065

Composition%

ZrO2+HfO2

95.0±0.3

Y2O3

4.8±0.2

Diameter φ   mm

0.10

0.20

0.30

0.34

0.40

0.65

Size range   mm

0.08~0.12

0.18~0.22

0.28~0.32

0.32~0.36

0.37~0.43

0.60~0.70

Packed density   g/cm3

3.61

3.63

3.70

3.70

3.70

3.70

Density   g/cm3

6.03

6.03

6.04

6.04

6.04

6.04

Hardness HV

≥1350

≥1350

≥1350

≥1350

≥1350

≥1300

Crushing   strength N

≥10

≥40

≥130

≥150

≥200

≥400

Wear ppm/h

≤0.50

≤0.50

≤0.50

≤0.50

≤0.50

≤0.50
